VS-E5PH3012L-N3

Hyperfast Rectifier

VS-E5PH3012L-N3 Features

* Hyperfast and optimized Qrr

* Best in class forward voltage drop and switching losses trade off

* Optimized for high speed operation

* 175 °C maximum operating junction temperature

* Polyimide passivation

* Material categorization: for definitions of

VS-E5PH3012L-N3 General Description

/ APPLICATIONS Featuring a unique combination of low conduction and switching losses, this rectifier is the right choice for high frequency converters, both soft switched / resonant. Specifically designed to improve efficiency of PFC and output rectification stages of EV / HEV battery charging stati.

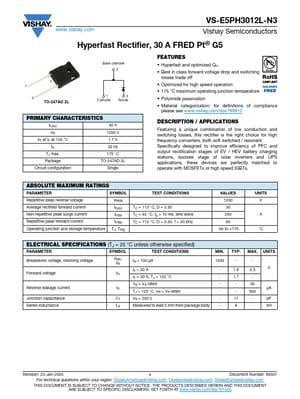

VS-E5PH3012L-N3 Datasheet (146.40 KB)

Preview of VS-E5PH3012L-N3 PDF

Datasheet Details

Part number:

VS-E5PH3012L-N3

Manufacturer:

Vishay ↗

File Size:

146.40 KB

Description:

Hyperfast rectifier.
www.vishay.com VS-E5PH3012L-N3 Vishay Semiconductors Hyperfast Rectifier, 30 A FRED Pt® G5 2 1 3 TO-247AD 2L Base cathode 2 1 Cathode 3 Anode P.
