VS-E5PH6012L-N3 - Hyperfast Rectifier

Vishay

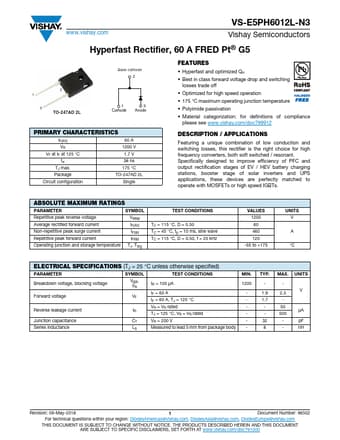

VS-E5PH6012L-N3 Datasheet Preview — Preview of VS-E5PH6012L-N3 PDF

Datasheet Details

Part number	VS-E5PH6012L-N3
Manufacturer	Vishay ↗
File Size	126.80 KB
Description	Hyperfast Rectifier
Datasheet	VS-E5PH6012L-N3-Vishay.pdf

VS-E5PH6012L-N3 Product details

Description

/ APPLICATIONS Featuring a unique combination of low conduction and switching losses, this rectifier is the right choice for high frequency converters, both soft switched / resonant. Specifically designed to improve efficiency of PFC and output rectification stages of EV / HEV battery charging stations, booster stage of solar inverters and UPS applications, these devices are perfectly matched to operate with MOSFETs or high speed IGBTs. ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL Repetitive

Features

Hyperfast and optimized Qrr.
Best in class forward voltage drop and switching losses trade off.
Optimized for high speed operation.
175 °C maximum operating junction temperature.
Polyimide passivation.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
