VS-E5TX1506FP-N3

Hyperfast Rectifier

VS-E5TX1506FP-N3 Features

* Best in class forward voltage drop and switching losses trade off

* Optimized for high speed operation

* 175 °C maximum operating junction temperature

* Polyimide passivation

* Fully isolated package (VINS =2500 VRMS)

* True 2 pin package

* D

VS-E5TX1506FP-N3 General Description

/ APPLICATIONS Featuring a unique combination of low conduction and switching losses, this rectifier is the right choice for soft switched and resonant converters, as well as medium frequency hard switching converters. This device is specifically designed to improve as output rectifier for DC/DC sta.

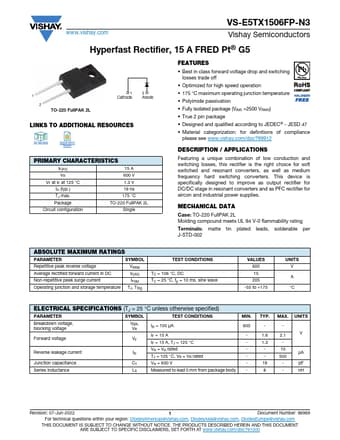

VS-E5TX1506FP-N3 Datasheet (184.92 KB)

Preview of VS-E5TX1506FP-N3 PDF

Datasheet Details

Part number:

VS-E5TX1506FP-N3

Manufacturer:

Vishay ↗

File Size:

184.92 KB

Description:

Hyperfast rectifier.
www.vishay.com VS-E5TX1506FP-N3 Vishay Semiconductors Hyperfast Rectifier, 15 A FRED Pt® G5 1 2 TO-220 FullPAK 2L 1 Cathode 2 Anode LINKS TO AD.
