VS-E5TX3006S2L-M3 - Hyperfast Rectifier

Vishay

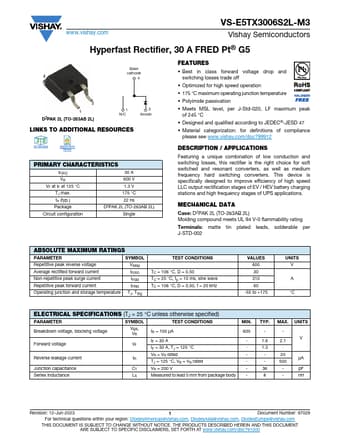

VS-E5TX3006S2L-M3 Datasheet Preview — Preview of VS-E5TX3006S2L-M3 PDF

Datasheet Details

Part number	VS-E5TX3006S2L-M3
Manufacturer	Vishay ↗
File Size	214.48 KB
Description	Hyperfast Rectifier
Datasheet	VS-E5TX3006S2L-M3-Vishay.pdf

VS-E5TX3006S2L-M3 Product details

Description

/ APPLICATIONS Featuring a unique combination of low conduction and switching losses, this rectifier is the right choice for soft switched and resonant converters, as well as medium frequency hard switching converters.

Features

Best in class forward voltage drop and switching losses trade off.
Optimized for high speed operation.
175 °C maximum operating junction temperature.
Polyimide passivation.
Meets MSL level, per J-Std-020, LF maximum peak of 245 °C.
Designed and qualified according to JEDEC®-JESD 47.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
