VS-E5TX1512S2L-M3

Hyperfast Rectifier

VS-E5TX1512S2L-M3 Features

* Hyperfast and optimized Qrr

* Best in class forward voltage drop and switching losses trade off

* Optimized for high speed operation

* 175 °C maximum operating junction temperature

* Polyimide passivation

* Meets MSL level 1, per J-STD-020, LF maximu

VS-E5TX1512S2L-M3 General Description

/ APPLICATIONS Featuring a unique combination of low conduction and switching losses, this rectifier is the right choice for high frequency converters, both soft switched / resonant. Specifically designed to improve efficiency of PFC and output rectification stages of EV / HEV battery charging stati.

VS-E5TX1512S2L-M3 Datasheet (201.88 KB)

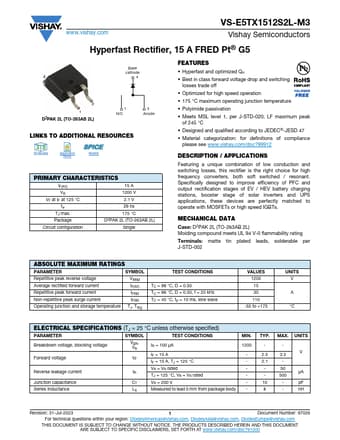

Preview of VS-E5TX1512S2L-M3 PDF

Datasheet Details

Part number:

VS-E5TX1512S2L-M3

Manufacturer:

Vishay ↗

File Size:

201.88 KB

Description:

Hyperfast rectifier.
www.vishay.com VS-E5TX1512S2L-M3 Vishay Semiconductors Hyperfast Rectifier, 15 A FRED Pt® G5 Base cathode 4 4 D2PAK 2L (TO-263AB 2L) 1 N/C 3 .
