VS-E7MH0112HM3 - Hyperfast Rectifier

Vishay

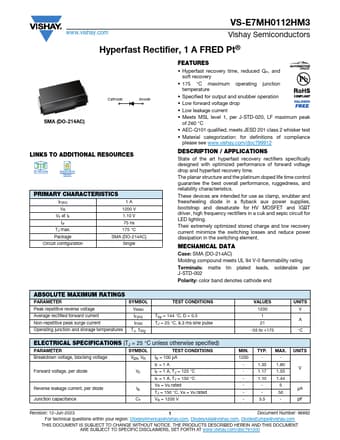

VS-E7MH0112HM3 Datasheet Preview — Preview of VS-E7MH0112HM3 PDF

Datasheet Details

Part number	VS-E7MH0112HM3
Manufacturer	Vishay ↗
File Size	173.26 KB
Description	Hyperfast Rectifier
Datasheet	VS-E7MH0112HM3-Vishay.pdf

VS-E7MH0112HM3 Product details

Description

/ APPLICATIONS State of the art hyperfast recovery rectifiers specifically designed with optimized performance of forward voltage drop and hyperfast recovery time.

Features

Hyperfast recovery time, reduced Qrr, and soft recovery.
175 °C maximum operating junction temperature.
Specified for output and snubber operation.
Low forward voltage drop.
Low leakage current.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified, meets JESD 201 class 2 whisker test.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
