VS-MBR2080CT-1PbF Datasheet - Vishay

Schottky Rectifier

VS-MBR2080CT-1PbF Features

* 150 °C TJ operation

* Low forward voltage drop

* High frequency operation

* Center tap D2PAK and TO-262 packages

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ru

VS-MBR2080CT-1PbF General Description

This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse ba.

VS-MBR2080CT-1PbF Datasheet (176.30 KB)

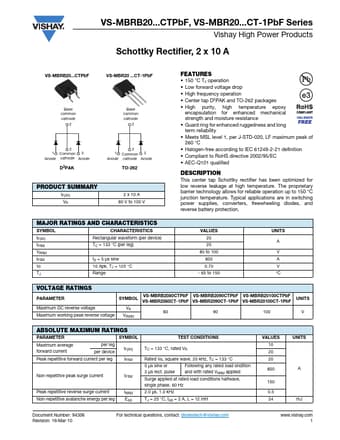

Preview of VS-MBR2080CT-1PbF PDF

Datasheet Details

Part number:

VS-MBR2080CT-1PbF

Manufacturer:

Vishay ↗

File Size:

176.30 KB

Description:

Schottky rectifier.
VS-MBRB20CTPbF, VS-MBR20CT-1PbF Series Vishay High Power Products Schottky Rectifier, 2 x 10 A VS-MBRB20CTPbF VS-MBR20 CT-1PbF Base common cathode .
