VS-MBR20100CT-1-M3 High Performance Schottky Rectifier

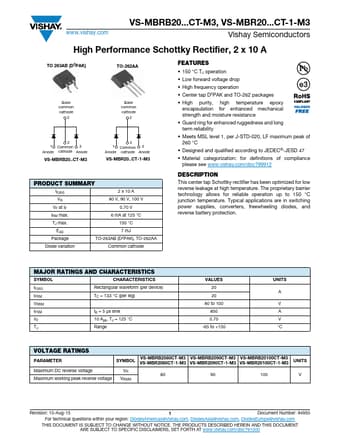

www.vishay.com VS-MBRB20CT-M3, VS-MBR20CT-1-M3 Vishay Semiconductors High Performance Schottky Rectifier, 2 x 10 A TO 263AB (D2PAK) TO-262AA Base common cathode 2 Base common cathode 2 2 1 Common 3 Anode cathode Anode VS-MBRB20..CT-M3 2 1 Common 3 Anode cathode Anode VS-MBR20..CT-1-M3 PRODUCT SUMMARY IF(AV) 2 x 10 A VR 80 V, 90 V, 100 V VF at IF 0.70 V IRM max. TJ max. 6 mA at 125 °C 150 °C EAS Package 7 mJ TO-263AB (D2PAK), TO-262AA Diode variation Common cathode MAJOR RATI.

VS-MBR20100CT-1-M3 Features

* 150 °C TJ operation

* Low forward voltage drop

* High frequency operation

* Center tap D2PAK and TO-262 packages

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ru
