VS-MBR2035CT-1PbF, VS-MBRB2035CTPbF, Schottky Rectifier

VS-MBRB20..CTPbF, VS-MBR20..CT-1PbF Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 10 A VS-MBRB20..CTPbF VS-MBR20..CT-1PbF .
This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

VS-MBRB2035CTPbF-Vishay.pdf

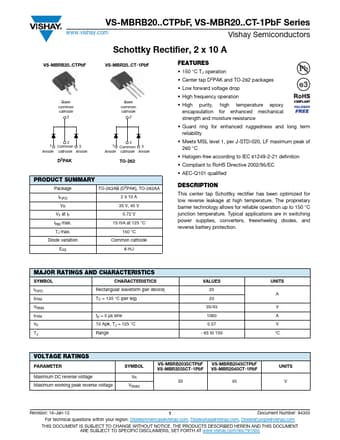

VS-MBR2035CT-1PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBR2035CT-1PbF, VS-MBRB2035CTPbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-MBR2035CT-1PbF, VS-MBRB2035CTPbF

Manufacturer:

Vishay ↗

File Size:

165.01 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-MBR2035CT-1PbF, VS-MBRB2035CTPbF.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation
* Center tap D2PAK and TO-262 packages
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ru

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) IFRM VRRM IFSM VF TJ Rectangular waveform (per device) TC = 135 °C (per leg) tp = 5 μs sine 10 Apk, TJ = 125 °C Range VALUES 20 20 3
