VS-MBR3045CTPbF

Schottky Rectifier

VS-MBR3045CTPbF Features

* 150 °C TJ operation

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness and long term reliability

* Co

VS-MBR3045CTPbF General Description

This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse ba.

VS-MBR3045CTPbF Datasheet (120.74 KB)

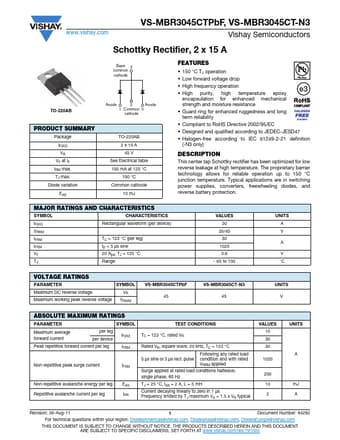

Preview of VS-MBR3045CTPbF PDF

Datasheet Details

Part number:

VS-MBR3045CTPbF

Manufacturer:

Vishay ↗

File Size:

120.74 KB

Description:

Schottky rectifier.
www.vishay.com VS-MBR3045CTPbF, VS-MBR3045CT-N3 Vishay Semiconductors TO-220AB PRODUCT SUMMARY Package IF(AV) VR VF at IF IRM max. TJ max. Diode var.
