VS-MBR3045WT-N3

Schottky Rectifier

VS-MBR3045WT-N3 Features

* 150 °C TJ operation

* Very low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness and long term reliability

VS-MBR3045WT-N3 General Description

The VS-MBR30..WT center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeli.

VS-MBR3045WT-N3 Datasheet (154.45 KB)

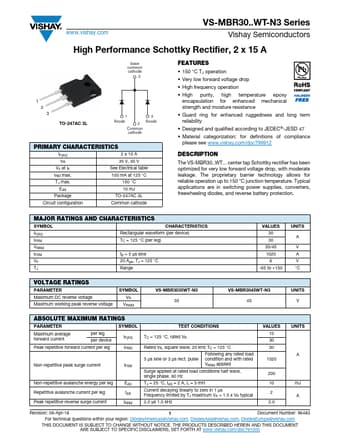

Preview of VS-MBR3045WT-N3 PDF

Datasheet Details

Part number:

VS-MBR3045WT-N3

Manufacturer:

Vishay ↗

File Size:

154.45 KB

Description:

Schottky rectifier.
VS-MBR30..WTPbF Series, VS-MBR30..WT-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base common cathode 2 TO-247AC P.
