VS-MBRB4045CTPbF Datasheet - Vishay

Schottky Rectifier

VS-MBRB4045CTPbF Features

* 150 °C TJ operation

* Low forward voltage drop

* High frequency operation

* Center tap TO-220, D2PAK and TO-262 packages

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enh

VS-MBRB4045CTPbF General Description

The center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse bat.

VS-MBRB4045CTPbF Datasheet (167.99 KB)

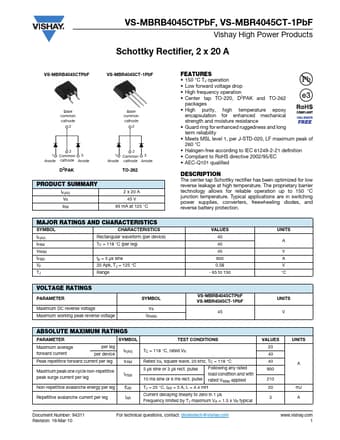

Preview of VS-MBRB4045CTPbF PDF

Datasheet Details

Part number:

VS-MBRB4045CTPbF

Manufacturer:

Vishay ↗

File Size:

167.99 KB

Description:

Schottky rectifier.
VS-MBRB4045CTPbF, VS-MBR4045CT-1PbF Vishay High Power Products Schottky Rectifier, 2 x 20 A VS-MBRB4045CTPbF VS-MBR4045CT-1PbF Base common cathode .
