VS-MUR820-N3 Datasheet, Rectifier, Vishay

VS-MUR820-N3 Features

• Rectifier Base cathode 2
• Ultrafast recovery time
• Low forward voltage drop
• 175 °C operating junction temperature
• Low leakage current
• Compliant to

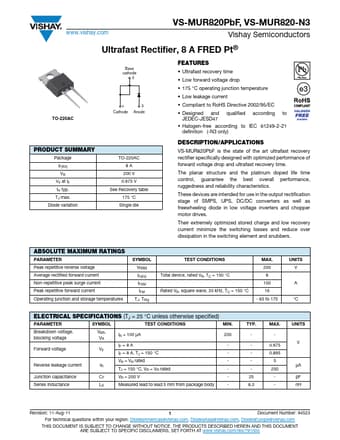

PDF File Details

Part number:

VS-MUR820-N3

Manufacturer:

Vishay ↗

File Size:

157.53kb

Download:

📄 Datasheet

Description:

Ultrafast rectifier. APPLICATIONS PRODUCT SUMMARY Package IF(AV) VR VF at IF trr typ. TJ max. Diode variation TO-220AC 8A 200 V 0.975 V See Recovery table

VS-MUR820-N3 Application

• Applications PRODUCT SUMMARY Package IF(AV) VR VF at IF trr typ. TJ max. Diode variation TO-220AC 8A 200 V 0.975 V See Recovery table 175 °C Single
