VS-VSKJS409-150 Power Modules Schottky Rectifier

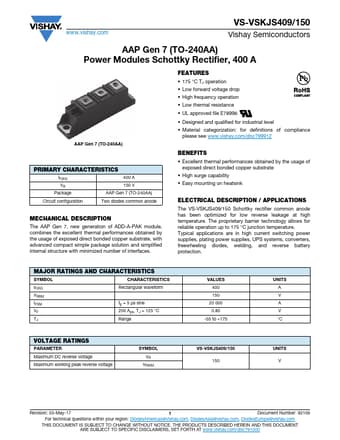

📥 Download Datasheet Datasheet Preview Page 1

Description

www.vishay.com VS-VSKJS409/150 Vishay Semiconductors AAP Gen 7 (TO-240AA) Power Modules Schottky Rectifier, 400 A AAP Gen 7 (TO-240AA) PRIMARY CHA.
The AAP Gen 7, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct bonded copper s.

📥 Download Datasheet

Preview of VS-VSKJS409-150 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL approved file E78996
* Designed and qualified for industrial level
* Material categorization: for definitions of compliance please see www

Applications

* The VS-VSKJS409/150 Schottky rectifier common anode has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature.  Typical applications are in high current switching power supplies, plating power s
