VSGR050 Datasheet, Resistor, Vishay

VSGR050 Features

  • Resistor
  • High power capability up to 20 kW at 40 °C (1)
  • Operating temperature range: -25 °C to +250 °C
  • Protection IP00 to IP23
  • Material categorization:

PDF File Details

Part number:

VSGR050

Manufacturer:

Vishay ↗

File Size:

159.15kb

Download:

📄 Datasheet

Description:

Stainless steel power resistor. Part Number: VSGR0501008K90LX00 VSGR 0 5 0 1 0 0 8 K 9 0 L X 0 0 MODEL VARIANT VALUE VSGR Examples: 050 = 5 kW 085 = 8.5 kW 100

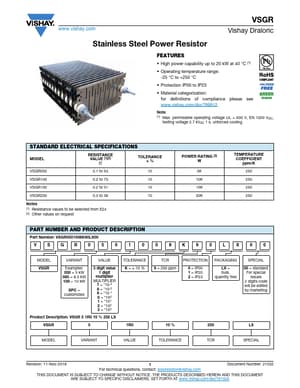

Datasheet Preview: VSGR050 📥 Download PDF (159.15kb)
Page 2 of VSGR050 Page 3 of VSGR050

VSGR050 Application

  • Applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statemen
