VSGR150, VSGR050 - Stainless Steel Power Resistor

Vishay

VSGR150 Datasheet Preview — This datasheet PDF includes multiple part numbers: VSGR150, VSGR050. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VSGR150, VSGR050
Manufacturer	Vishay ↗
File Size	159.15 KB
Description	Stainless Steel Power Resistor
Datasheet	VSGR050-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VSGR150, VSGR050. Please refer to the document for exact specifications by model.

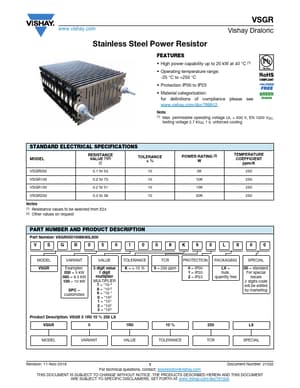

VSGR150 Product details

Description

Part Number: VSGR0501008K90LX00 VSGR 0 5 0 1 0 0 8 K 9 0 L X 0 0 MODEL VARIANT VALUE VSGR Examples: 050 = 5 kW 085 = 8.5 kW 100 = 10 kW SPC = customized 3 digit value 1 digit multiplier MULTIPLIER 7 = 10-3 8 = 10-2 9 = 10-1 0 = 100 1 = 101 2 = 102 3 = 103 Product Description: VSGR 5 1R0 10 % 250 LX VSGR 5 TOLERANCE K = ± 10 % 1R0 TCR 9 = 250 ppm PROTECTION 0 = IP00 1 = IP20 2 = IP23 PACKAGING LX = bulk, quantity free SPECIAL 00 = standard For spec

Features

High power capability up to 20 kW at 40 °C (1).
Operating temperature range: -25 °C to +250 °C.
Protection IP00 to IP23.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Note (1) Max. permissible operating voltage UL = 600 V, EN 1000 VDC, testing voltage 2.7 kVAC 1 s, unforced cooling.
