VSKCS201-045 Schottky Rectifier

VSKCS201/045 Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Schottky Rectifier, 200 A .
MECHANICAL DESCRIPTION The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the u.

VSKCS201-045-Vishay.pdf

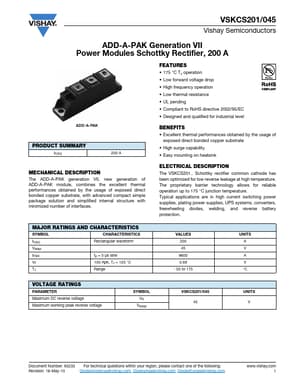

VSKCS201-045 Datasheet Preview — Preview of VSKCS201-045 PDF

Datasheet Details

Part number:

VSKCS201-045

Manufacturer:

Vishay ↗

File Size:

242.45 KB

Description:

Schottky Rectifier

Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL pending
* Compliant to RoHS directive 2002/95/EC
* Designed and qualified for industrial level ADD-A-PAK BENEFITS
* Excellent the

Applications

* are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) VRRM IFSM VF TJ tp = 5 μs sine 100 Apk, TJ = 125 °C Range CHARACTERISTICS Rectangular waveform
