ZGL41-100A - Surface Mount Glass Passivated Power Voltage-Regulating Diodes

Vishay

📥 Download Datasheet

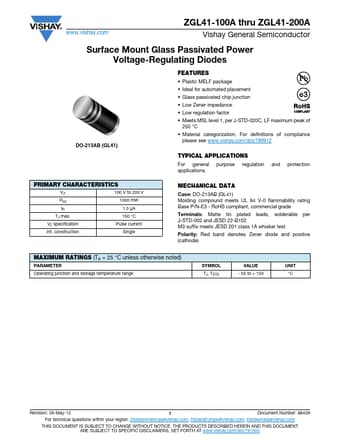

ZGL41-100A Datasheet Preview — Preview of ZGL41-100A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZGL41-100A
Manufacturer	Vishay
File Size	80.44 KB
Description	Surface Mount Glass Passivated Power Voltage-Regulating Diodes
Datasheet	ZGL41-100A-Vishay.pdf

ZGL41-100A Product details

Features

Plastic MELF package.
Ideal for automated placement.
Glass passivated chip junction.
Low Zener impedance.
Low regulation factor.
Meets MSL level 1, per J-STD-020C, LF maximum peak of 250 °C.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.
