ZGL41-140, ZGL41-100, Surface Mount Glass Passivated Power Voltage-Regulating Diodes

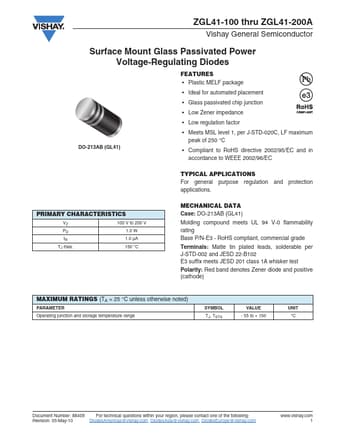

ZGL41-100 thru ZGL41-200A Vishay General Semiconductor Surface Mount Glass Passivated Power Voltage-Regulating Diodes DO-213AB (GL41) .

ZGL41-100-Vishay.pdf

ZGL41-140 Datasheet Preview — This datasheet PDF includes multiple part numbers: ZGL41-140, ZGL41-100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ZGL41-140, ZGL41-100

Manufacturer:

Vishay ↗

File Size:

56.44 KB

Description:

Surface Mount Glass Passivated Power Voltage-Regulating Diodes

Note:

This datasheet PDF includes multiple part numbers: ZGL41-140, ZGL41-100.
Please refer to the document for exact specifications by model.

Features

* Plastic MELF package
* Ideal for automated placement
* Glass passivated chip junction
* Low Zener impedance
* Low regulation factor
* Meets MSL level 1, per J-STD-020C, LF maximum peak of 250 °C
* Compliant to RoHS directive 2002/95/EC and in

Applications

* For general purpose regulation and protection applications. PRIMARY CHARACTERISTICS VZ PD IR TJ max. 100 V to 200 V 1.0 W 1.0 μA 150 °C MECHANICAL DATA Case: DO-213AB (GL41) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS compliant, commercial grade Terminals: Matte tin p
