ZGL41-140A, ZGL41-100A Surface Mount Glass Passivated Power Voltage-Regulating Diodes

ZGL41-140A Description

www.vishay.com ZGL41-100A thru ZGL41-200A Vishay General Semiconductor Surface Mount Glass Passivated Power Voltage-Regulating Diodes DO-213AB (GL4.

ZGL41-140A Features

* Plastic MELF package
* Ideal for automated placement
* Glass passivated chip junction
* Low Zener impedance
* Low regulation factor
* Meets MSL level 1, per J-STD-020C, LF maximum peak of 250 °C
* Material categorization: For definitions of c

ZGL41-140A Applications

* For general purpose regulation and protection applications. PRIMARY CHARACTERISTICS VZ 100 V to 200 V Ptot 1000 mW IR 1.0 μA TJ max. 150 °C VZ specification Pulse current Int. construction Single MECHANICAL DATA Case: DO-213AB (GL41) Molding compound meets UL 94 V-0 flammability rating Bas

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ZGL41-140A, ZGL41-100A. Please refer to the document for exact specifications by model.

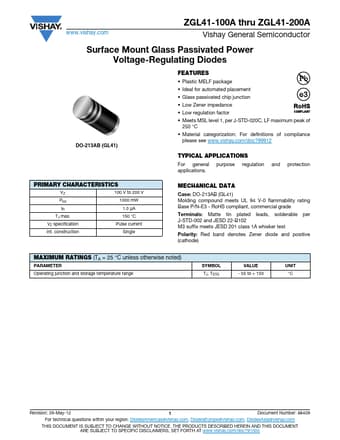

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZGL41-140A, ZGL41-100A
Manufacturer
Vishay ↗
File Size
80.44 KB
Datasheet
ZGL41-100A-Vishay.pdf
Description
Surface Mount Glass Passivated Power Voltage-Regulating Diodes
Note
This datasheet PDF includes multiple part numbers: ZGL41-140A, ZGL41-100A.
Please refer to the document for exact specifications by model.
