ZGL41-180, ZGL41-100 Surface Mount Glass Passivated Power Voltage-Regulating Diodes

Vishay

Description

ZGL41-100 thru ZGL41-200A Vishay General Semiconductor Surface Mount Glass Passivated Power Voltage-Regulating Diodes DO-213AB (GL41) .

📥 Download Datasheet

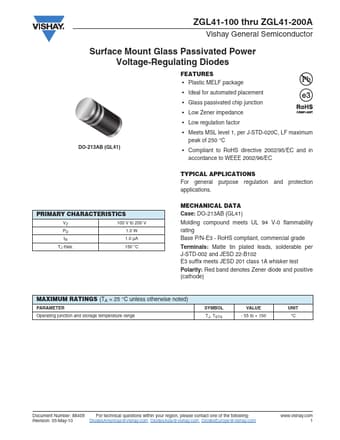

ZGL41-180 Datasheet Preview — This datasheet PDF includes multiple part numbers: ZGL41-180, ZGL41-100. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ZGL41-180, ZGL41-100
Manufacturer: Vishay ↗
File Size: 56.44 KB
Datasheet: ZGL41-100-Vishay.pdf
Description: Surface Mount Glass Passivated Power Voltage-Regulating Diodes
Note: This datasheet PDF includes multiple part numbers: ZGL41-180, ZGL41-100.
Please refer to the document for exact specifications by model.

Features

* Plastic MELF package
* Ideal for automated placement
* Glass passivated chip junction
* Low Zener impedance
* Low regulation factor
* Meets MSL level 1, per J-STD-020C, LF maximum peak of 250 °C
* Compliant to RoHS directive 2002/95/EC and in

Applications

* For general purpose regulation and protection applications. PRIMARY CHARACTERISTICS VZ PD IR TJ max. 100 V to 200 V 1.0 W 1.0 μA 150 °C MECHANICAL DATA Case: DO-213AB (GL41) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS compliant, commercial grade Terminals: Matte tin p
