VSC8140 - 2.48832Gb/s 16:1 SONET/SDH Transceiver

Vitesse Semiconductor

📥 Download Datasheet

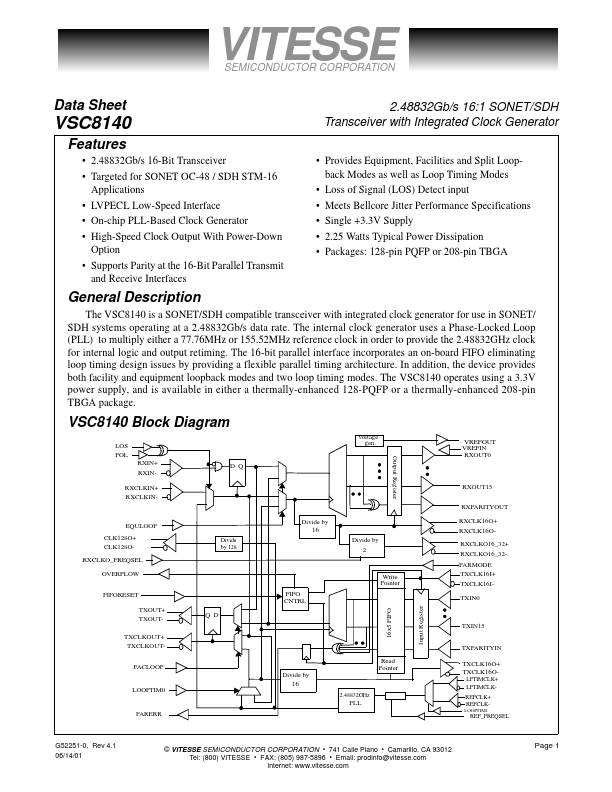

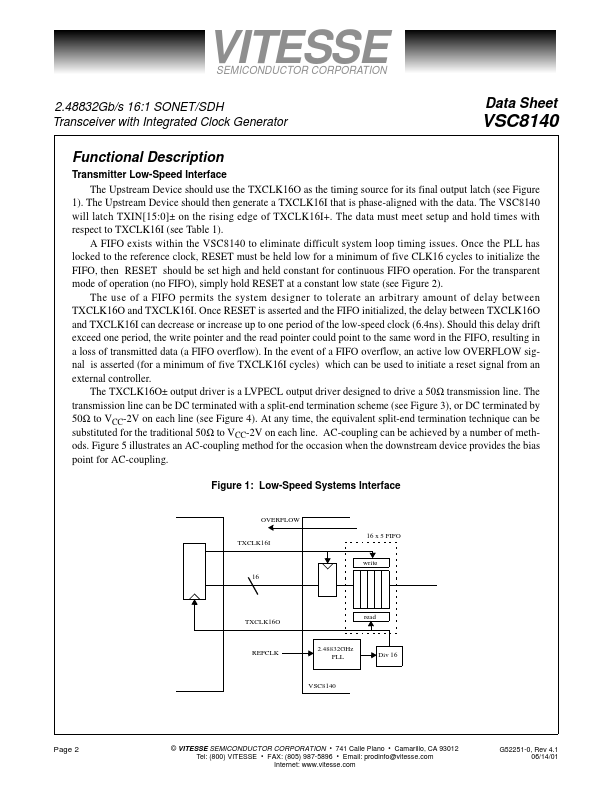

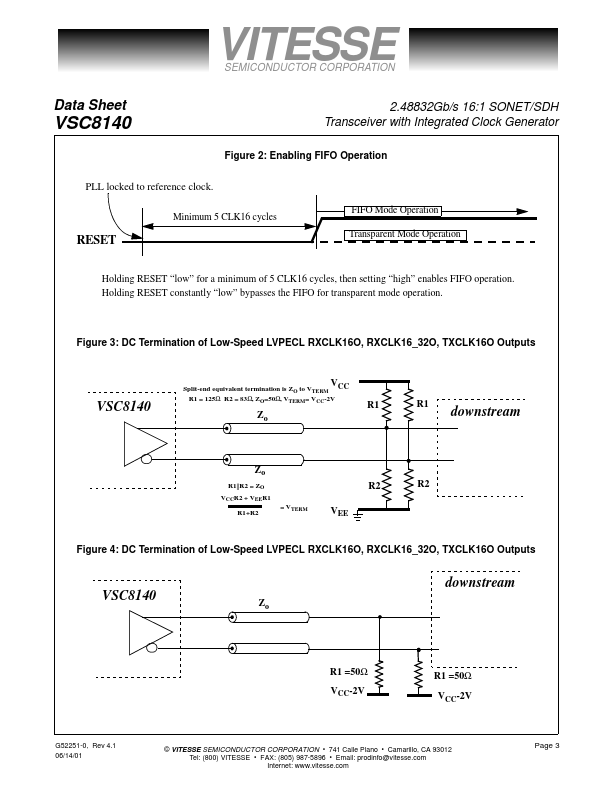

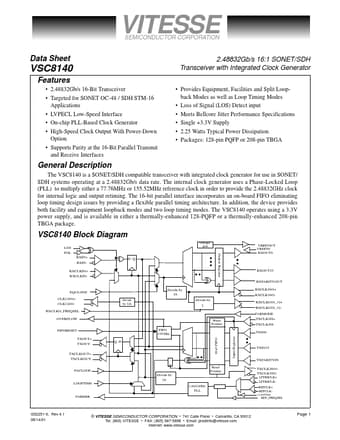

VSC8140 Datasheet Preview — Preview of VSC8140 PDF

Datasheet Details

Part number	VSC8140
Manufacturer	Vitesse Semiconductor
File Size	276.49 KB
Description	2.48832Gb/s 16:1 SONET/SDH Transceiver
Datasheet	VSC8140-VitesseSemiconductor.pdf

VSC8140 Product details

Description

Provides Equipment, Facilities and Split Loopback Modes as well as Loop Timing Modes Loss of Signal (LOS) Detect input Meets Bellcore Jitter Performance Specifications Single +3.3V Supply 2.25 Watts Typical Power Dissipation Packages: 128-pin PQFP or 208-pin TBGA The VSC8140 is a SONET/SDH compatible transceiver with integrated clock generator for use in SONET/ SDH systems operating at a 2.48832Gb/s data rate.The internal clock gener

Features

2.48832Gb/s 16-Bit Transceiver.
Targeted for SONET OC-48 / SDH STM-16.
