VSC8161 Datasheet - Vitesse Semiconductor

2.488Gb/s SONET / SDH 16:1 Mux

VSC8161 Features

* 16:1 Multiplexer Integrated with Clock Multiplier and Laser Driver

* Monolithic Phase Locked Loop

* Laser Driver Provides up to 110 mA Current

* Differential 16-bit Parallel Data

* 100 pin 14x14 Plastic Quad Flat Package

* Jitter Generation Meets SO

VSC8161 General Description

The VSC8161 combines a Laser Driver and a clock multiplier with a 16:1 multiplexer to provide a singlechip solution. The 16-bit data word is latched by an internal version of the reference clock, and is bit-multiplexed up to 2.488GHz. The on-chip PLL generates the internal 2.488GHz clock, which rema.

VSC8161 Datasheet (121.09 KB)

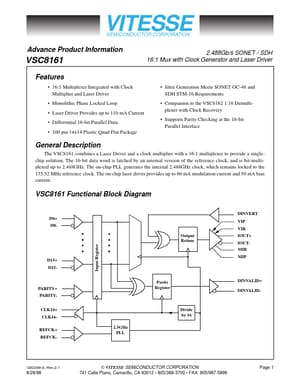

VSC8161 Datasheet Preview — Preview of VSC8161 PDF

Datasheet Details

Part number:

VSC8161

Manufacturer:

Vitesse Semiconductor

File Size:

121.09 KB

Description:

2.488gb/s sonet / sdh 16:1 mux.
