VSC8164

2.488 Gbit/sec to 2.7Gbit/sec 1:16 SONET/SDH Demux

Vitesse Semiconductor

VSC8164 Features

* 2.488Gb/s 1:16 Demultiplexer

* Targeted for SONET OC-48 / SDH STM-16 Applications

* Supports FEC rates up to 2.7Gb/s

* Differential LVPECL Low Speed Interface

* Single +3.3V Supply

* 128 Pin 14x20mm PQFP Package General Description The VSC8164 is a

VSC8164 General Description

The VSC8164 is a 1:16 demultiplexer for use in SONET/SDH systems operating at a standard 2.488Gb/s data rate or forward error correction (FEC) data rate up to 2.7Gb/s. The device operates using a single 3.3V power supply, and is packaged in a thermally enhanced plastic package. The thermal performan.

VSC8164 Datasheet (153.95 KB)

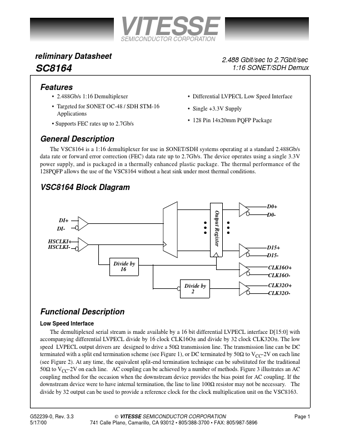

VSC8164 Datasheet Preview — Preview of VSC8164 PDF

Datasheet Details

Part number:

VSC8164

Manufacturer:

Vitesse Semiconductor

File Size:

153.95 KB

Description:

2.488 gbit/sec to 2.7gbit/sec 1:16 sonet/sdh demux.
