EDI7F33512C

512Kx32 Flash

EDI7F33512C Features

* • 512Kx32, 2x512Kx32 and 4x512Kx32 Densities • Based on AMDs - AM290F040 Flash Device • Fast Read Access Time - 80-150ns • 5- Volt-Only Reprogramming • Sector Erase Architecture • Uniform sectors of 64 Kbytes each • Any combination of sectors can be erased • Also supports full chip erase • Sector Pr

EDI7F33512C General Description

The EDI7F33512, EDI7F233512 and EDI7F433512 are organized as 512Kx32 and 2x512Kx32 and 4x512Kx32 respectively. The modules are based on AMD's AM29F040 - 512Kx8 Flash Device in TSOP packages which are mounted on an FR4 substrate. The modules offer access times between 80 and 150ns allowing for operat.

EDI7F33512C Datasheet (562.82 KB)

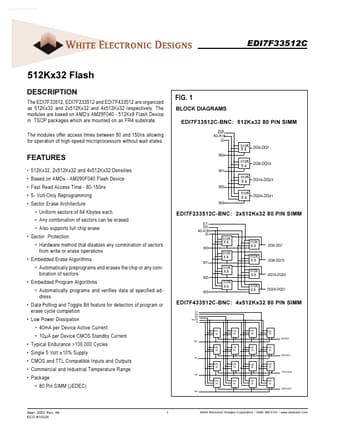

Preview of EDI7F33512C PDF

Datasheet Details

Part number:

EDI7F33512C

Manufacturer:

WEDC

File Size:

562.82 KB

Description:

512kx32 flash.
