EDI7F332MC - 2Mx32 FLASH MODULE

Datasheet Summary

Description

The EDI7F332MC and EDI7F2332MC are organized as one and two banks of 2Mx32 respectively.

The modules are based on AMDs AM29F016 - 2Mx8 Flash device in TSOP packages which are mounted on a FR4 substrate.

Features

ES n n n n n 2Mx32 and 2x2Mx32 Densities Based on AMD - AM29F016 Flash Device Fast Read Access Time - 90ns 5V-Only Reprogamming Sector Erase Architecture n n n n n Uniform sectors of 64 Kbytes each Any combination of sectors can be erased Also supports full chip erase Hardware method that disables any combination of sectors from write or erase operations Automatically preprograms and erase the chip or any combination of sectors Automatically programs and verifies data at specified address Secto.

Datasheet Details

Part number	EDI7F332MC
Manufacturer	White Electronic Designs
File Size	289.79 KB
Description	2Mx32 FLASH MODULE
Datasheet	EDI7F332MC Datasheet
Additional preview pages of the EDI7F332MC datasheet.

📁 Similar Datasheet

EDI7F33512C - 512Kx32 Flash (WEDC)

EDI7F33IMC - 1Megx32 Flash Module (EDI)

EDI7F34IMC - 1Megx32 Flash Module (EDI)

EDI7F2331MC - 1Mx32 FLASH MODULE (White Electronic Designs Corporation)

EDI2AG272128V-D1 - 2 Megabyte Sync/Sync Burst (White Electronic)

EDI2AG272129V - 2 Megabyte Sync/Sync Burst (White Electronic)

EDI2CG272128V - Sync/Sync Burst SRAM SO-DIMM (White Electronic)

EDI2CG472128V - 4 Megabyte Sync/Sync Burst (White Electronic)

EDI2CG472256V - 8 Megabyte Sync/Sync Burst (White Electronic)

EDI2DL32256V - 256Kx32 Synchronous Pipline Burst SRAM (White Electronic)

Full PDF Text Transcription

Click to expand full text

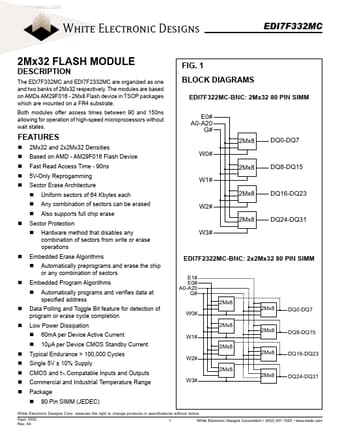

www.DataSheet4U.com White Electronic Designs 2Mx32 FLASH MODULE DESCRIPTION The EDI7F332MC and EDI7F2332MC are organized as one and two banks of 2Mx32 respectively. The modules are based on AMDs AM29F016 - 2Mx8 Flash device in TSOP packages which are mounted on a FR4 substrate. Both modules offer access times between 90 and 150ns allowing for operation of high-speed microprocessors without wait states. EDI7F332MC FIG.
