DTA115EE Datasheet - WEITRON

DTA115EE PNP Transistor

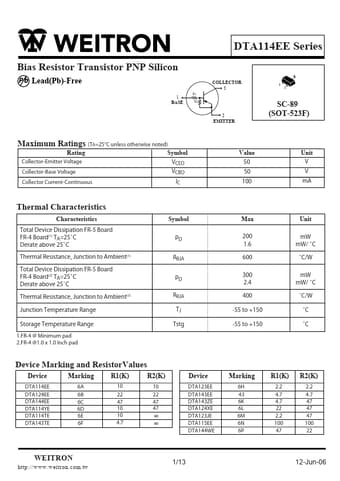

Bias Resistor Transistor PNP Silicon P b Lead(Pb)-Free 1 BASE R1 R2 DTA114EE Series COLLECTOR 3 2 EMITTER 1 2 33 SC-89 (SOT-523F) Maximum Ratings (TA=25°C unless otherwise noted) Rating Symbol Collector-Emitter Voltage Collector-Base Voltage VCEO VCBO Collector Current-Continuous IC Value 50 50 100 Unit V V mA Thermal Characteristics Characteristics Total Device Dissipation FR-5 Board FR-4 Board(1) TA=25˚C Derate above 25˚C Thermal Resistance, Junction to Ambient(1) Total Device.

DTA115EE Features

* ltage versus Outpu

DTA115EE Datasheet (749.56 KB)
