2SA1832 PNP TRANSISTOR

2SA1832 Description

RoHS 2SA1832 2SA1832 .

2SA1832 Features

* Power dissipation PCM SOT-523 TRANSISTOR (PNP) 1. BASE 2. EMITTER 3. COLLECTOR : 0.1 W (Tamb=25℃) Collector current ICM : -0.15 A Collector-base voltage V(BR)CBO : -50 V Operating and storage junction temperature range TJ, Tstg: -55℃ to +150℃ ELECTRICAL CHARACTERISTICS (Tamb=25℃ Parameter Colle

📥 Download Datasheet

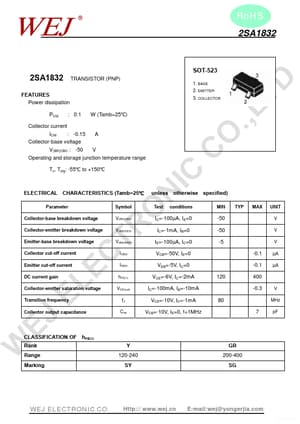

Preview of 2SA1832 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SA1832
Manufacturer
WEJ
File Size
141.42 KB
Datasheet
2SA1832-WEJ.pdf
Description
PNP TRANSISTOR
