Part number:
2SA1371
Manufacturer:
WEJ
File Size:
137.11 KB
Description:
Pnp transistor.

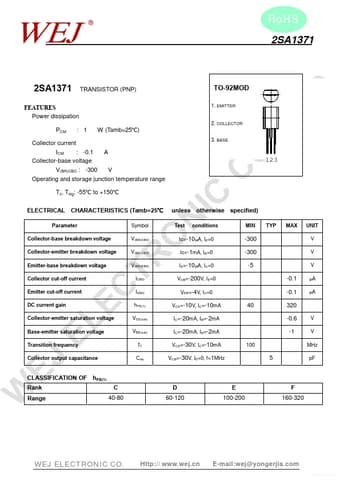

* Power dissipation PCM TRANSISTOR (PNP) TO-92MOD 1. EMITTER 2. COLLECTOR 3. BASE : 1 W (Tamb=25℃) Collector current ICM : -0.1 A Collector-base voltage V(BR)CBO : -300 V Operating and storage junction temperature range TJ, Tstg: -55℃ to +150℃ ELECTRICAL CHARACTERISTICS (Tamb=25℃ Parameter Collec
2SA1371
WEJ
137.11 KB
Pnp transistor.
