2SA1376A

PNP Silicon Transistor

2SA1376A Features

* High voltage VCEO:

* 180 V /

* 200 V (2SA1376/2SA1376A)

* Excellent hFE linearity

* High total power dissipation in small dimension: PT: 0.75 W

* Complementary transistor with 2SC3478 and 2SC3478A ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) 2SA1376/2SA1376A

2SA1376A Datasheet (155.62 KB)

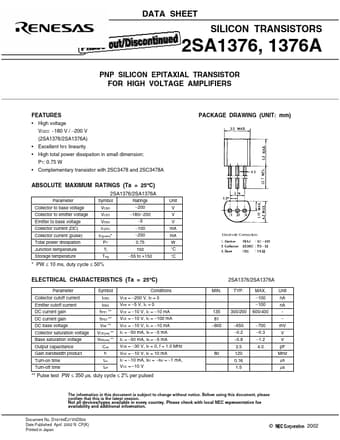

Preview of 2SA1376A PDF

Datasheet Details

Part number:

2SA1376A

Manufacturer:

NEC

File Size:

155.62 KB

Description:

Pnp silicon transistor.
