2SA1376 - PNP Silicon Transistor

Datasheet Summary

Features

  • High voltage VCEO:.
  • 180 V /.
  • 200 V (2SA1376/2SA1376A).
  • Excellent hFE linearity.
  • High total power dissipation in small dimension: PT: 0.75 W.
  • Complementary transistor with 2SC3478 and 2SC3478A.

📥 Download Datasheet

Datasheet preview – 2SA1376

Datasheet Details

Part number 2SA1376
Manufacturer NEC
File Size 155.62 KB
Description PNP Silicon Transistor
Datasheet download datasheet 2SA1376 Datasheet
Additional preview pages of the 2SA1376 datasheet.

📁 Similar Datasheet

  • 2SA1376 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SA1376 - SILICON PNP TRANSISTOR (LZG)
  • 2SA1370 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1370 - SILICON PNP TRANSISTOR (LZG)
  • 2SA1370 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SA1371 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1371 - PNP Transistor (WEJ)
  • 2SA1371 - SILICON PNP TRANSISTOR (LZG)
  • 2SA1371 - PNP Transistor (JIANGSU CHANGJIANG)
  • 2SA1371 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

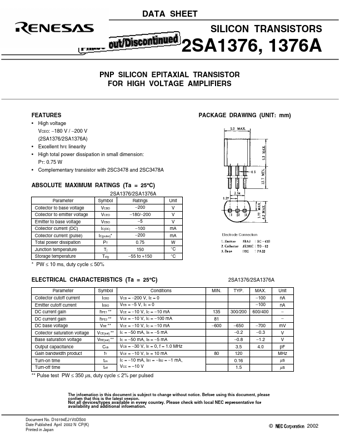

DATA SHEET SILICON TRANSISTORS 2SA1376, 1376A PNP SILICON EPITAXIAL TRANSISTOR FOR HIGH VOLTAGE AMPLIFIERS FEATURES • High voltage VCEO: −180 V / −200 V (2SA1376/2SA1376A) • Excellent hFE linearity • High total power dissipation in small dimension: PT: 0.75 W • Complementary transistor with 2SC3478 and 2SC3478A ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) 2SA1376/2SA1376A Parameter Symbol Ratings Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current (DC) Collector current (pulse) Total power dissipation Junction temperature Storage temperature VCBO VCEO VEBO IC(DC) IC(pulse)* PT Tj Tstg −200 −180/−200 −5 −100 −200 0.
