2SA1370 - PNP/NPN Epitaxial Planar Silicon Transistors

2SA1370 Description

Ordering number:EN1412C PNP/NPN Epitaxial Planar Silicon Transistors 2SA1370/2SC3467 High-Definition CRT Display, Video Output Applications Use .

2SA1370 Features

* High breakdown voltage : VCEO≥200V.
* Small reverse transfer capacitance and excellent high frequency characteristic : Cre=1.2pF (NPN), 1.7pF (PNP).
* Adoption of FBET process. ( ) : 2SA1370 EIAJ : SC-51 SANYO : MP Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Colle

2SA1370 Applications

* Use

📥 Download Datasheet

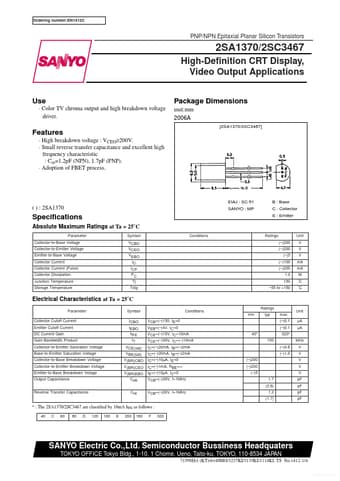

Preview of 2SA1370 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1370
Manufacturer
Sanyo Semicon Device
File Size
155.37 KB
Datasheet
2SA1370_SanyoSemiconDevice.pdf
Description
PNP/NPN Epitaxial Planar Silicon Transistors
