2SC3734LT1 - NPN EPITAXIAL SILICON TRANSISTOR

📥 Download Datasheet

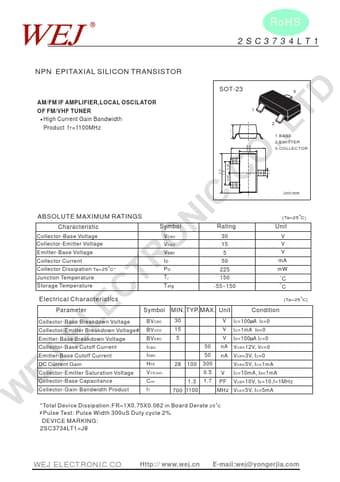

Datasheet preview – 2SC3734LT1

Datasheet Details

Part number 2SC3734LT1
Manufacturer WEJ
File Size 95.87 KB
Description NPN EPITAXIAL SILICON TRANSISTOR
Datasheet download datasheet 2SC3734LT1 Datasheet
Additional preview pages of the 2SC3734LT1 datasheet.

📁 Similar Datasheet

  • 2SC3734 - NPN Transistor (NEC)
  • 2SC3734 - NPN Silicon Transistor (Kexin)
  • 2SC373 - Silicon NPN Transistor (ETC)
  • 2SC3731 - NPN SILICON TRANSISTOR (NEC)
  • 2SC3732 - NPN SILICON TRANSISTOR (NEC)
  • 2SC3733 - NPN SILICON TRANSISTOR (NEC)
  • 2SC3735 - NPN Transistor (NEC)
  • 2SC3736 - HIGH SPEED SWITCHING NPN SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SC3736 - NPN Silicon Epitaxial Transistor (Guangdong Kexin Industrial)
  • 2SC3737 - Power Transistor (Inchange Semiconductor)
Other Datasheets by WEJ

Full PDF Text Transcription

Click to expand full text
RoHS 2SC3734LT1 NPN EPITAXIAL SILICON TRANSISTOR AM/FM IF AMPLIFIER,LOCAL OSCILATOR DOF FM/VHF TUNER High Current Gain Bandwidth .,LTProduct fT=1100MHz SOT-23 1 1. 2.4 1.3 3 2 1.BASE 2.EMITTER 3.COLLECTOR 2.9 1.9 0.95 0.95 0.4 CO Unit:mm ICABSOLUTE MAXIMUM RATINGS Characteristic NCollector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage OCollector Current Collector Dissipation Ta=25 oC* RJunction Temperature TStorage Temperature Symbol VCBO VCEO VEBO Ic PD Tj Tstg Rating 30 15 5 50 225 150 -55~150 (Ta=25 oC) Unit V V V mA mW O C O C Electrical Characteristics (Ta=25 oC) CParameter Symbol MIN. TYP. MAX.
