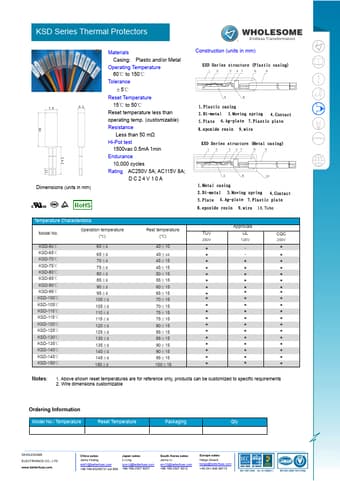

KSD Series Thermal Protectors Dimensions (units in mm) Materials Casing: Plastic and/or Metal Operating Temperature 60℃ to 150℃ Tolerance ±5℃ Reset Temperature 15℃ to 50℃ Reset temperature less than operating temp. (customizable) Resistance Less than 50 mΩ Hi-Pot test 1500vac 0.5mA 1min Endurance 10,000 cycles Rating AC250V 5A; AC115V 8A; DC24V10A Construction (units in mm) RoHS Temperature Characteristics Model No. Operation temperature (Ԩ) KSD-60℃ KSD-65℃ KSD-70℃ KSD-75℃ KSD-80℃ KSD-85.
