AH212 Datasheet (WJ Communication) - High Gain InGaP HBT Amplifier

AH212, High Gain InGaP HBT Amplifier

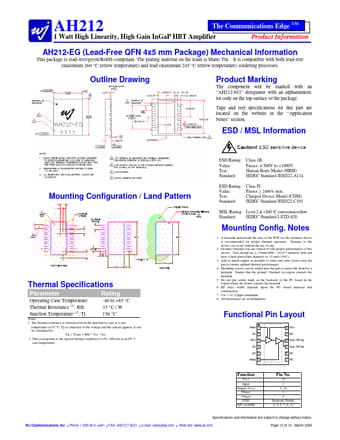

AH212 The Communications Edge TM 1 Watt High Linearity, High Gain InGaP HBT Amplifier Product Information AH212-EG (Lead-Free QFN 4x5 mm Package) Mechanical Information This package is lead-free/green/RoHS-compliant.

The plating material on the leads is Matte Tin.

It is compatible with both lead-free (maximum 260 qC reflow temperature) and lead (maximum 245 qC reflow temperature) soldering processes.

Outline Drawing Product Marking The component will be marked with an “ AH212-EG” designato
