AH2114C, AH2114 Datasheet - National Semiconductor

AH2114C, AH2114, DPST Analog Switch

> > AH2114/AH2114C DPST Analog Switch I General .
IO The AH21 14 is a DPST analog switch circuit comprised of two junction FET switches and their associated driver.

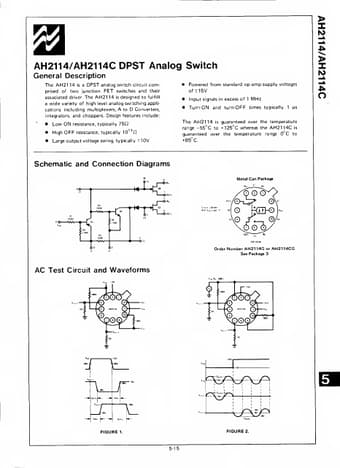

datasheet Preview Page 1 from Datasheet4u.com

AH2114-NationalSemiconductor.pdf

AH2114C Datasheet Preview — This datasheet PDF includes multiple part numbers: AH2114C, AH2114. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AH2114C, AH2114

Manufacturer:

National Semiconductor

File Size:

46.55 KB

Description:

DPST Analog Switch

Note:

This datasheet PDF includes multiple part numbers: AH2114C, AH2114.
Please refer to the document for exact specifications by model.

Features

* include: 1 Low ON resistance, typically 75fi High OFF resistance, typically 11 10 f2 Large output voltage swing, typically ±10V Powered from standard op-amp supply voltages of ±15V Input signals in excess of 1 MHz O Turn-ON and turn-OFF times typically 1 Ms The AH2114 is guaranteed over
