1SMC5385B

5.0W SURFACE MOUNT ZENER DIODE

1SMC5385B Features

* Glass Passivated Die Construction

* 5.0W Power Dissipation

* 3.3V

* 200V Nominal Zener Voltage

* 5% Standard Vz Tolerance

* Low Inductance

* For Use in Voltage Regulator or Reference

* Plastic Case Material has UL Flammability Classification Rating 94V-0 1SMC53

1SMC5385B Datasheet (92.45 KB)

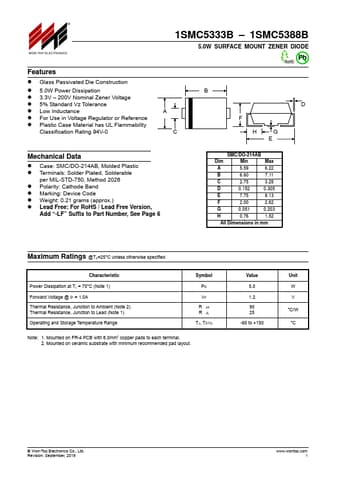

Preview of 1SMC5385B PDF

Datasheet Details

Part number:

1SMC5385B

Manufacturer:

WON-TOP

File Size:

92.45 KB

Description:

5.0w surface mount zener diode.
