BAS16H, BAS16H-WON SURFACE MOUNT FAST SWITCHING DIODE

BAS16H Description

® WON-TOP ELECTRONICS BAS16H SURFACE MOUNT FAST SWITCHING DIODE Pb .

BAS16H Features

* Silicon Epitaxial Planar Die Construction
* Fast Switching Speed
* Surface Mount Package Ideally Suited for Automatic Insertion

BAS16H Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 C A B Mechanical Data
* Case: SOD-323, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: Cathode Band
* Weight: 0.004 grams (approx. )
* Marking: A6

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS16H, BAS16H-WON. Please refer to the document for exact specifications by model.

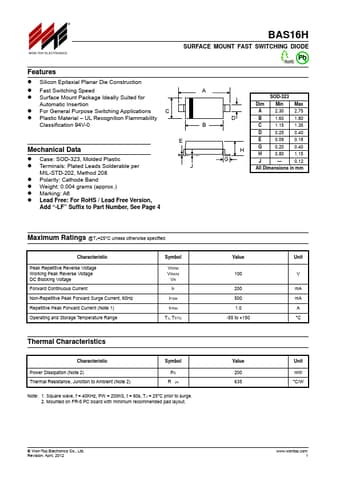

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS16H, BAS16H-WON
Manufacturer
WON-TOP
File Size
83.27 KB
Datasheet
BAS16H-WON-TOP.pdf
Description
SURFACE MOUNT FAST SWITCHING DIODE
Note
This datasheet PDF includes multiple part numbers: BAS16H, BAS16H-WON.
Please refer to the document for exact specifications by model.
