BAS19W, BAS19W-WON SURFACE MOUNT FAST SWITCHING DIODE

BAS19W Description

® WON-TOP ELECTRONICS BAS19W * BAS21W SURFACE MOUNT FAST SWITCHING DIODE Pb .

BAS19W Features

* High Conductance
* Fast Switching
* Surface Mount Package Ideally Suited for Automatic Insertion

BAS19W Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 B Mechanical Data
* Case: SOT-323, Molded Plastic K
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: See Diagram
* Weight: 0.006 grams (approx. )
* Mounting Posit

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS19W, BAS19W-WON. Please refer to the document for exact specifications by model.

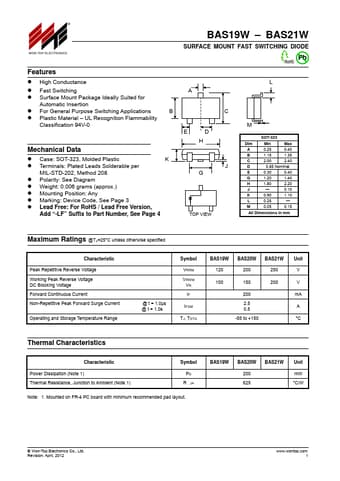

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS19W, BAS19W-WON
Manufacturer
WON-TOP
File Size
85.25 KB
Datasheet
BAS19W-WON-TOP.pdf
Description
SURFACE MOUNT FAST SWITCHING DIODE
Note
This datasheet PDF includes multiple part numbers: BAS19W, BAS19W-WON.
Please refer to the document for exact specifications by model.
