BAS16TW, BAS16TW-WON SURFACE MOUNT FAST SWITCHING DIODE

BAS16TW Description

® WON-TOP ELECTRONICS BAS16TW SURFACE MOUNT FAST SWITCHING DIODE ARRAY Pb .

BAS16TW Features

* Isolated Triple Diode
* Fast Switching
* Surface Mount Package Ideally Suited for Automatic Insertion

BAS16TW Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 B Mechanical Data
* Case: SOT-363, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: See Diagram
* Weight: 0.006 grams (approx. )
* Mounting Position: Any

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS16TW, BAS16TW-WON. Please refer to the document for exact specifications by model.

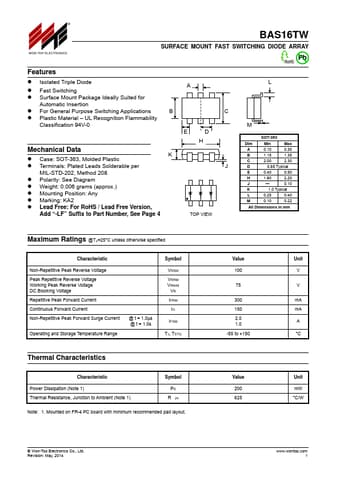

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS16TW, BAS16TW-WON
Manufacturer
WON-TOP
File Size
85.40 KB
Datasheet
BAS16TW-WON-TOP.pdf
Description
SURFACE MOUNT FAST SWITCHING DIODE
Note
This datasheet PDF includes multiple part numbers: BAS16TW, BAS16TW-WON.
Please refer to the document for exact specifications by model.
