BAS70A, BAS70-WON, SURFACE MOUNT SCHOTTKY BARRIER DIODE

® WON-TOP ELECTRONICS BAS70 / A / C / S SURFACE MOUNT SCHOTTKY BARRIER DIODE Pb .

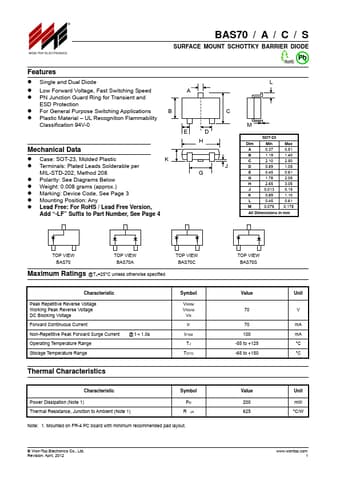

datasheet Preview Page 1 from Datasheet4u.com

BAS70-WON-TOP.pdf

BAS70A Datasheet Preview — This datasheet PDF includes multiple part numbers: BAS70A, BAS70-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BAS70A, BAS70-WON

Manufacturer:

WON-TOP

File Size:

85.07 KB

Description:

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Note:

This datasheet PDF includes multiple part numbers: BAS70A, BAS70-WON.
Please refer to the document for exact specifications by model.

Features

* Single and Dual Diode L
* Low Forward Voltage, Fast Switching Speed A
* PN Junction Guard Ring for Transient and ESD Protection

Applications

* B C
* Plastic Material
* UL Recognition Flammability Classification 94V-0 M ED H SOT-23 Dim Min Max Mechanical Data
* Case: SOT-23, Molded Plastic
* Terminals: Plated Leads Solderable per K A 0.37 0.51 B 1.19 1.40 C 2.10 2.50 J D 0.89 1.05 MIL-STD-202, Meth
