BAS70ADW, BAS70TW, SURFACE MOUNT SCHOTTKY DIODES ARRAYS

BAS70TW/ADW/CDW/SDW SURFACE MOUNT SCHOTTKY DIODES ARRAYS These devices .

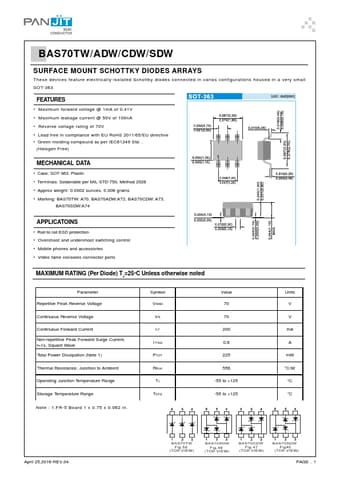

datasheet Preview Page 1 from Datasheet4u.com

BAS70TW-PANJIT.pdf

BAS70ADW Datasheet Preview — This datasheet PDF includes multiple part numbers: BAS70ADW, BAS70TW. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BAS70ADW, BAS70TW

Manufacturer:

PAN JIT

File Size:

412.73 KB

Description:

SURFACE MOUNT SCHOTTKY DIODES ARRAYS

Note:

This datasheet PDF includes multiple part numbers: BAS70ADW, BAS70TW.
Please refer to the document for exact specifications by model.

Features

* Maximum forward voltage @ 1mA of 0.41V
* Maximum leakage current @ 50V of 100nA
* Reverse voltage rating of 70V
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA

Applications

* shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified
