BAV19WS, BAV19WS-WON, SURFACE MOUNT FAST SWITCHING DIODE

® WON-TOP ELECTRONICS BAV19WS * BAV21WS SURFACE MOUNT FAST SWITCHING DIODE Pb .

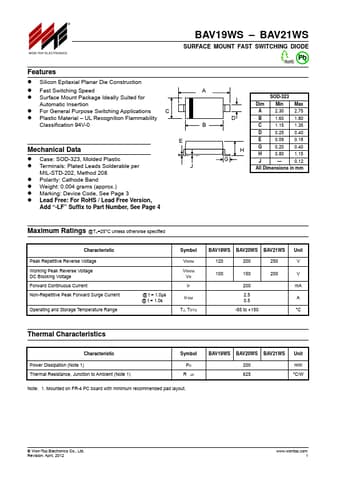

datasheet Preview Page 1 from Datasheet4u.com

BAV19WS-WON-TOP.pdf

BAV19WS Datasheet Preview — This datasheet PDF includes multiple part numbers: BAV19WS, BAV19WS-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BAV19WS, BAV19WS-WON

Manufacturer:

WON-TOP

File Size:

84.28 KB

Description:

SURFACE MOUNT FAST SWITCHING DIODE

Note:

This datasheet PDF includes multiple part numbers: BAV19WS, BAV19WS-WON.
Please refer to the document for exact specifications by model.

Features

* Silicon Epitaxial Planar Die Construction
* Fast Switching Speed
* Surface Mount Package Ideally Suited for Automatic Insertion

Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 C A B Mechanical Data
* Case: SOD-323, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: Cathode Band
* Weight: 0.004 grams (approx. )
* Marking: Device C
