DA221, DA221-WON SURFACE MOUNT FAST SWITCHING DIODE

WON-TOP

DA221 Description

® WON-TOP ELECTRONICS DA221 SURFACE MOUNT FAST SWITCHING DIODE Pb .

DA221 Features

* Dual Diode Series
* Fast Switching
* Surface Mount Package Ideally Suited for Automatic Insertion

DA221 Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 B Mechanical Data
* Case: SOT-523, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: See Diagram
* Weight: 0.002 grams (approx. )
* Mounting Position: Any

📥 Download Datasheet

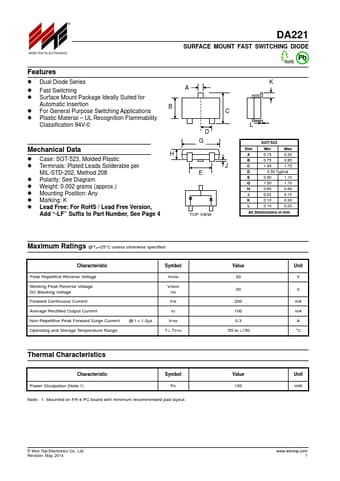

DA221 Datasheet Preview — This datasheet PDF includes multiple part numbers: DA221, DA221-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: DA221, DA221-WON
Manufacturer: WON-TOP
File Size: 38.15 KB
Datasheet: DA221-WON-TOP.pdf
Description: SURFACE MOUNT FAST SWITCHING DIODE
Note: This datasheet PDF includes multiple part numbers: DA221, DA221-WON.
Please refer to the document for exact specifications by model.
