MBR140L, MBR120L-WON - 1.0A LOW VF SURFACE MOUNT SCHOTTKY BARRIER DIODE

MBR140L Description

® WON-TOP ELECTRONICS MBR120L * MBR140L 1.0A LOW VF SURFACE MOUNT SCHOTTKY BARRIER DIODE Pb .

MBR140L Features

* Very Low Forward Voltage
* Fast Switching
* PN Junction Guard Ring for Transient and ESD Protection

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR140L, MBR120L-WON. Please refer to the document for exact specifications by model.

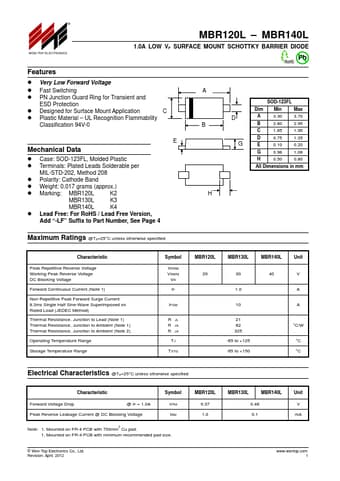

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR140L, MBR120L-WON
Manufacturer
WON-TOP
File Size
37.33 KB
Datasheet
MBR120L-WON-TOP.pdf
Description
1.0A LOW VF SURFACE MOUNT SCHOTTKY BARRIER DIODE
Note
This datasheet PDF includes multiple part numbers: MBR140L, MBR120L-WON.
Please refer to the document for exact specifications by model.
