MBRD660CT, MBRD620CT-WON, 6.0A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER

® WON-TOP ELECTRONICS MBRD620CT * MBRD6100CT 6.0A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER Pb .

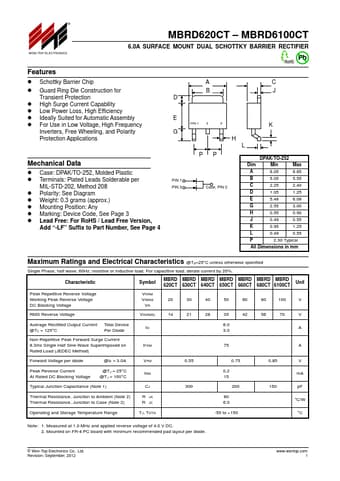

datasheet Preview Page 1 from Datasheet4u.com

MBRD620CT-WON-TOP.pdf

MBRD660CT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRD660CT, MBRD620CT-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBRD660CT, MBRD620CT-WON

Manufacturer:

WON-TOP

File Size:

41.32 KB

Description:

6.0A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: MBRD660CT, MBRD620CT-WON.
Please refer to the document for exact specifications by model.

Features

* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* High Surge Current Capability
* Low Power Loss, High Efficiency
* Ideally Suited for Automatic Assembly
* For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection

Applications

* Mechanical Data
* Case: DPAK/TO-252, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: See Diagram
* Weight: 0.3 grams (approx. )
* Mounting Position: Any
* Marking: Device Code, See Page 3
* Lead Free: For RoHS / Lead Free Version
