MUR860 - 8.0A GLASS PASSIVATED SUPERFAST RECTIFIER

Product Overview

WON-TOP

Part number	MUR860
Manufacturer	WON-TOP
File Size	40.83 KB
Description	8.0A GLASS PASSIVATED SUPERFAST RECTIFIER
Datasheet	MUR860 Datasheet
Note	This datasheet PDF includes multiple part numbers: MUR860, MUR860-WON. Please refer to the document for exact specifications by model.

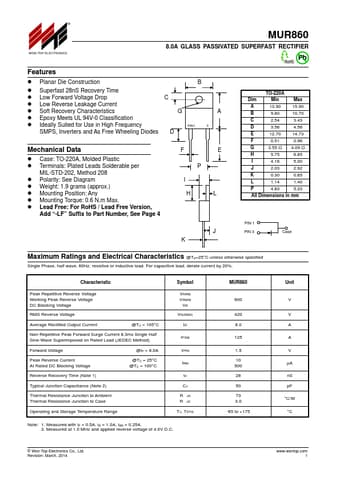

Additional preview pages of the MUR860 datasheet.

Planar Die Construction.
Superfast 28nS Recovery Time.
Low Forward Voltage Drop.
Low Reverse Leakage Current.
Soft Recovery Characteristics.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: TO-220A, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.9 grams (appro.
