MUR860FL Datasheet - Yangzhou Yangjie

MUR860FL, Ultra-Fast Recovery Diode

MUR860FL RoHS COMPLIANT Ultra-Fast Recovery Diodes 8A FRED .

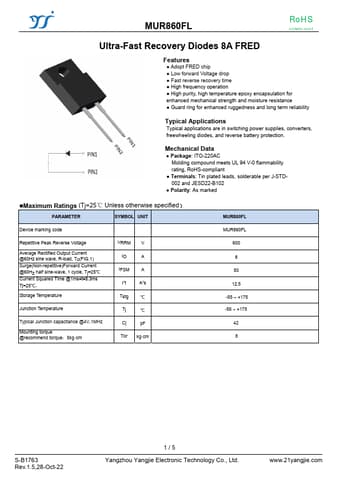

datasheet Preview Page 1 from Datasheet4u.com

MUR860FL-YangzhouYangjie.pdf

MUR860FL Datasheet Preview — Preview of MUR860FL PDF

Datasheet Details

Part number:

MUR860FL

Manufacturer:

Yangzhou Yangjie

File Size:

240.81 KB

Description:

Ultra-Fast Recovery Diode

Features

* Adopt FRED chip
* Low forward Voltage drop
* Fast reverse recovery time
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Typ

Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: ITO-220AC Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B
