MUR860U Ultra-Fast Recovery Diode

Yangzhou Yangjie

Description

MUR860U RoHS COMPLIANT Ultra-Fast Recovery Diodes 8A FRED .

📥 Download Datasheet

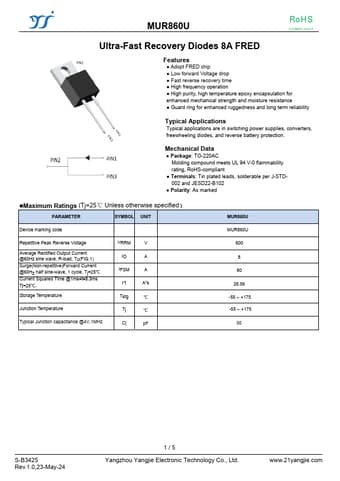

MUR860U Datasheet Preview — Preview of MUR860U PDF

Datasheet Specifications

Part number: MUR860U
Manufacturer: Yangzhou Yangjie
File Size: 224.37 KB
Datasheet: MUR860U-YangzhouYangjie.pdf
Description: Ultra-Fast Recovery Diode

Features

* Adopt FRED chip
* Low forward Voltage drop
* Fast reverse recovery time
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Typ

Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-220AC Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B1
