RS1004FL, RS1000FL-WON 1.0A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY DIODE

RS1004FL Description

® WON-TOP ELECTRONICS RS1000FL * RS1010FL 1.0A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY DIODE Pb .

RS1004FL Features

* Low Profile 1.08mm Max. Case Height
* Glass Passivated Die Construction
* Low Forward Voltage Drop, High Efficiency
* Surge Overload Rating to 30A Peak
* Fast Recovery Time C
* Ideally Suited for Automatic Assembly
* Plastic Material
* UL Recognition Fla

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS1004FL, RS1000FL-WON. Please refer to the document for exact specifications by model.

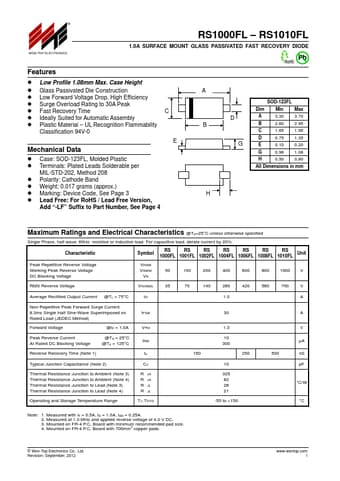

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS1004FL, RS1000FL-WON
Manufacturer
WON-TOP
File Size
38.77 KB
Datasheet
RS1000FL-WON-TOP.pdf
Description
1.0A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY DIODE
Note
This datasheet PDF includes multiple part numbers: RS1004FL, RS1000FL-WON.
Please refer to the document for exact specifications by model.
